Introductions

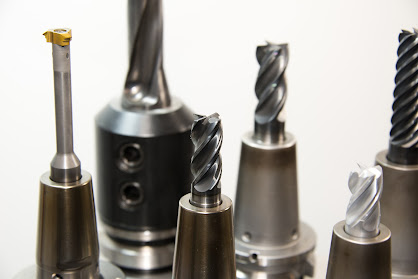

                             In modern CNC systems, the design of a mechanical part and its manufacturing program are highly automated. The part's mechanical dimensions are defined using CAD software and then translated into manufacturing directives by computer aided manufacturing - CAM software. CNC means Computer Numerical Control machines. It is the automated control of machining tools such as drills, lathes, mills, grinders, routers and 3D Printers.

                         A CNC machine processes a piece of material - metal, plastic, wood, ceramic, stone to meet specifications by following coded programmed instructions and without a manual operator directly controlling the machining operation. A CNC machine is a motorized maneuverable tool and often a motorized maneuverable platform, which are both controlled by computer, according to specific input instructions.

                            Instructions are delivered to a CNC machine in the form of a sequential program of machine control instructions such as G-code and M-code, and then executed. The program can be written by a person or, far more often , generated by graphical computer - aided design (CAD) or computer - aided manufacturing (CAM) software. In the case of 3D printers, the part to be printed is "sliced" before the instructions or the program are generated. 3D printers also use G-code.

                     CNC offers greatly increased productivity over non-computerized machining for repetitive production, where the machine must be manually controlled or mechanically controlled by pre-fabricated pattern guides. However, these advantages come at significant cost in terms of both capital expenditure and setup time.

Parts Of CNC Lathe Machines

                                   A CNC lathe machine is a precision machining tool designed for turning cylindrical workpieces, creating features such as grooves, threads, and contours. It consists of several essential components and parts that work together to perform machining operations. Here are the key parts of a CNC lathe machines.

  A) CNC Lathe Headstock - The CNC lathe machine headstock is a vital and integral part of the overall machine structure. Positioned at the left end of the lathe bed, it serves as the central hub for the rotational movement of of the workpiece during machining operations. At the heart of the headstock lies the main spindle, which is responsible for generating the rotational motion required for turning, drilling, and other machining processes. This main spindle is powered by the machine's motor, which transmits torque and speed to achieve precise and controlled movement.

                    The headstock's primary function is to transmit power from the motor to the workpiece, enabling the necessary rotation and movement for machining. By securely griping workpiece and rotating it at varying speeds and directions, the headstock facilitates the creation of intricate shapes, contours, and features with precision and repeatability.  The headstock plays a crucial role in maintaining the stability and accuracy of the machining process. Its robust construction and precise alignment ensure the workpiece remains firmly held, minimizing unwanted vibrations or deflections during machining. This stability is essential for achieving high quality surface finishes, tight tolerances, and dimensional accuracy in the final machined parts. Overall, the CNC lathe headstock acts as the powerhouse of the machine, providing the necessary rotational motion and holding capabilities to execute a wide range of machining operations. Its reliability, precision, and stability are crucial for achieving consistent and efficient machining results.

                   The applications of CNC lathe headstock's are Turning Operations, Tapping, Milling & Grooving, Indexing & Multi - Axis Machining, Drilling And Boring. There are two types of CNC lathe headstocks are commonly used in the industry :

(1) Fixed Headstock  - The fixed headstock, also known as a box type headstock, is a stationary component that houses the main spindle and other associated mechanisms. It remain fixed in its position throughout the machining process. The workpiece is clamped and secured in the chuck or collet, while the headstock provides rotational motion to the workpiece.

(2) Sliding Headstock - The sliding headstock, also referred to as a Swiss - type or sliding headstock lathe, is a movable component that can slide along the lathe bed. Sliding headstock lathes are commonly used in watchmaking, medical device manufacturing, and electronics industries, where high precision and intricate details are crucial. They excel in production small, complex components with tight tolerances, as the proximity of the headstock to the workpiece enhances accuracy and reduces deflection during machining.

   B) CNC Lathe Machine Bed -  The bed of a CNC lathe machine is the chassis that holds everything together. It is generally a beam that runs the length of the machine and supports all of the functional sub-assemblies. The bed must be stiff enough that it does not experience measurable distortion, even under the most extreme usage conditions. Usually bed made up of cast iron. Provides a heavy rigid frame on which all the main component are mounted. The bed of the lathe provides the foundation of the whole machine and holds the headstock, tailstock and carriage in alignment.

                                 The surfaces of the bed that are finely machined - and upon which the carriage and tailstock slide - are known as "ways". CNC lathe beds are often made of : cast iron, mild steel, ductile cast iron, or a form of Granitan (an artificial casting stone substitute.) Materials such as Granitan carry minimal risk of cracking and chipping, improved toughness, and significant vibration damping.

C) Chuck -  The chuck is a clamping device mounted on the spindle. It holds the workpiece securely and rotates it while cutting tools engage with it. There are different types of chucks, such as three-jaw, four-jaw, and collet chucks, depending on the application.

D) Tailstock - The tailstock is located at the right end of the bed and serves as a support for long workpieces. It can be moved along the bed's length to provide additional stability and alignment. The tailstock often contains a center, which helps support the workpiece's free end.

E) Carriage - The carriage is a movable assembly that travels along the bed's length. It consists of several components, including the saddle and cross-slide. The carriage holds the cutting tool and moves it along the workpiece to perform turning and facing operations.

F) Saddle - The saddle is part of the carriage and moves along the bed's ways (rails). It provides longitudinal movement to the cutting tool, allowing it to traverse the workpiece during machining.

G) Cross Slide - The cross-slide is mounted on the saddle and provides transverse movement to the cutting tool. This movement allows for the creation of features like grooves and shoulders on the workpiece.

H) Tool Post - The tool post is mounted on the cross-slide and holds the cutting tool holder or tool turret. It allows for quick tool changes and precise positioning of cutting tools.

I) Tool Holder - The tool holder is attached to the tool post and securely holds the cutting tool (insert or tool bit). Different tool holders and tool types are used for various machining operations.

J) Control Panel - The control panel houses the CNC control unit, which contains the computer and software responsible for programming and operating the lathe. Operators input machining instructions, toolpaths, and other parameters through the control panel.

K) Coolant Systems - Many CNC lathes are equipped with a coolant system to keep the cutting tool and workpiece cool during machining. This helps extend tool life and improve surface finish.

L) Chip Conveyor - A chip conveyor is often present to remove metal chips and debris generated during machining, keeping the work area clean and safe.

     M) Foot Switches OR Pedals -  Foot switches are used to actual the chuck and tailstock quill. Through these pedals cnc machinist's open and close the chuck to grip the component, the same way tailstock quill is taken to forward position or reversed through these pedals.

    Advantages Of CNC Lathe Machines

                               CNC (Computer Numerical Control) lathe machines offer several advantages over conventional manual lathes, making them a popular choice in modern manufacturing processes. Here are some of the key advantages of CNC lathe machines:

1) Precision and Accuracy: CNC lathes are capable of producing highly precise and accurate parts. They can repeat the same machining operations with consistent results, reducing errors and scrap.

 2) Automation: CNC lathes can run unattended or with minimal operator intervention once the program is set up. This automation improves efficiency and reduces labor costs.

3) Versatility: CNC lathes can be programmed to create a wide range of complex shapes and contours. This versatility allows for the production of various parts, from simple to highly intricate components.

4) Increased Productivity: CNC lathes are faster than manual lathes, leading to increased productivity. They can perform multiple machining operations in a single setup, reducing the need for tool changes and setup time.

5) Reduced Material Waste: CNC lathe machines optimize tool paths, which helps minimize material waste and reduces the cost of raw materials.

6) Complex Geometries: CNC lathes can create complex shapes, such as threads, tapers, and radii, with ease, making them suitable for a wide range of applications.

 7) Quick Setup Changes: Changing from one part design to another on a CNC lathe typically involves updating the program and tooling, making setup changes quicker and more straightforward compared to manual lathes.

8) Improved Safety: CNC lathe machines have built-in safety features, such as interlocks and emergency stop buttons, which enhance operator safety.

9) Data Logging and Monitoring: Many CNC lathe machines come equipped with data logging and monitoring capabilities, allowing operators to track production data, diagnose issues, and optimize processes.

10) Reduced Operator Skill Requirement: While skilled operators are still needed to program and maintain CNC lathes, the actual machining process requires less operator skill than manual lathes, which can help mitigate labor shortages.

11) Quality Control: CNC lathes often incorporate quality control features, such as automatic measurement and inspection systems, which can help identify and rectify defects during the machining process.

12) Scalability: CNC lathe machines can be easily integrated into automated production lines and are scalable to meet the demands of high-volume production.

13) Cost-Efficiency: Although the initial investment in a CNC lathe machine can be significant, the long-term cost savings in terms of labor, material, and increased productivity can make them cost-effective for many businesses.

Overall, CNC lathe machines offer a combination of precision, versatility, automation, and efficiency that makes them a valuable asset in various manufacturing industries.

Disadvantages Of CNC Lathe Machines

                                   While CNC lathe machines offer numerous advantages, they also come with some disadvantages and challenges that should be considered when deciding whether to use them in a particular manufacturing environment. Here are some of the disadvantages of CNC lathe machines:

1) High Initial Cost: CNC lathe machines are expensive to purchase and install, which can be a significant barrier to entry for smaller businesses or startups.

2) Skilled Operator Requirement: Although CNC machines reduce the skill level needed to operate them compared to manual lathes, they still require operators with a certain level of training and expertise in programming, setup, and maintenance.

3) Maintenance Costs: CNC lathe machines require regular maintenance and occasional repairs, which can be costly over time. Ensuring the machine's proper functioning is essential o avoid downtime.

4) Programming Complexity: Programming a CNC lathe can be complex and time-consuming, especially for intricate parts. This complexity may necessitate hiring or training skilled programmers.

5) Limited Flexibility for Small Batch Production: CNC lathes are most cost-effective for high-volume production. Setting up and programming for small batch or one-off parts can be inefficient and time-consuming.

6) Vulnerable to Computer-Related Issues: CNC machines rely on computer systems and software, making them vulnerable to computer viruses, crashes, or compatibility issues that can disrupt production.

7) Lack of Operator Skill Diversification: Operators of CNC machines may become highly specialized and focused on a narrow range of tasks, limiting their ability to perform various tasks within the manufacturing process.

8) Rapid Technological Obsolescence: CNC technology evolves quickly, leading to the risk of machines becoming outdated and potentially requiring costly upgrades or replacements to remain competitive.

9) High Energy Consumption: CNC machines, especially larger ones, can consume a significant amount of electricity, contributing to higher operational costs.

10) Setup and Tooling Costs: While CNC lathes are efficient for high-volume production, the initial setup and tooling costs can be substantial, especially if frequent changeovers are required.

11) Dependency on External Factors: CNC machines can be sensitive to external factors like temperature and humidity, which can affect their performance and accuracy.

12) Limited Manual Control: In certain situations, manual control and adjustments may be necessary, but CNC machines have limited manual capabilities compared to traditional manual lathes.

13) Learning Curve: Transitioning from manual machining to CNC machining can be challenging for operators and may require a learning curve, impacting productivity during the adjustment period.

14) Risk of Software Bugs: Software glitches or bugs in the CNC control system can lead to errors in machining, potentially resulting in scrapped parts or rework.

15) Space Requirements: CNC lathe machines often require more floor space than manual lathes, which can be a limitation in smaller workshops or manufacturing facilities.

Future Of CNC Lathe Machines -

The future of CNC (Computer Numerical Control) lathe machines is likely to be shaped by several key trends and advancements in technology. While I can't provide real-time updates, here are some potential developments that may impact the future of CNC lathe machines:

A) Increased Automation: Automation is a growing trend in manufacturing, and CNC lathe machines are no exception. The future may see even greater levels of automation, with advanced robotics and AI-driven systems handling material handling, tool changes, and quality control.

B) Precision and Speed: Expect continued advancements in precision and speed. Improved tooling, more efficient control algorithms, and better sensors will contribute to faster and more accurate machining.

C) Integration of AI and Machine Learning: CNC lathe machines may incorporate AI and machine learning algorithms to optimize cutting paths, predict tool wear, and adapt to changing conditions during machining. This could lead to more efficient and resource-saving operations.

D) 3D Printing Integration: Some CNC lathe machines may integrate 3D printing capabilities, allowing for hybrid machining processes. This could be particularly useful in industries that require complex, customized parts.

E) Green Manufacturing: Sustainability will play a significant role in the future of CNC machining. Machines may be designed to be more energy-efficient, use environmentally friendly materials, and generate less waste.

F) Improved User Interfaces: User interfaces and control systems will become more intuitive and user-friendly. Operators may interact with machines using augmented reality (AR) or virtual reality (VR) interfaces.

G) Materials and Tooling: Advances in materials science will lead to the development of more durable cutting tools and the ability to machine a broader range of materials, including composites and advanced alloys.

H) Cost Reduction: As technology matures and becomes more widespread, the cost of CNC lathe machines may decrease, making them more accessible to a wider range of industries and businesses.

I) Globalization and Supply Chain Integration: CNC machining is a global industry, and machines will continue to be designed for seamless integration into global supply chains, with standardized communication protocols and compatibility with different manufacturing systems.

J) Customization and Small-Batch Production: With the rise of e-commerce and consumer demand for personalized products, CNC lathe machines may find increased use in small-batch and customized production runs.

K) Regulatory and Safety Standards: As technology evolves, so will regulatory and safety standards. Future CNC lathe machines will need to meet these evolving requirements to ensure safe and compliant operation.

It's important to note that the pace of technological advancement may vary by industry and region. As technology continues to evolve, CNC lathe machines will likely remain a vital part of mod manufacturing, adapting to the changing needs and demands of various industries.

Conclusion

                In conclusion, CNC lathe machines are powerful and versatile tools that have revolutionized the manufacturing industry. They offer a wide range of advantages, including precision, automation, productivity, versatility, and quality control. These benefits have made CNC lathes indispensable in various manufacturing processes, from aerospace to automotive to medical device production.

                        However, it's important to acknowledge the associated disadvantages and challenges, such as the high initial cost, skilled operator requirement, and the need for regular maintenance and programming expertise. These factors may require careful consideration and planning when integrating CNC lathe machines into a manufacturing operation.

           Ultimately, the decision to use CNC lathe machines should be based on the specific needs and circumstances of a business. For companies engaged in high-volume production with a focus on precision and efficiency, CNC lathe machines are likely to provide substantial benefits and a competitive edge. However, smaller businesses with lower production volumes or limited resources may need to weigh the costs and challenges more carefully.

      In any case, staying up-to-date with advancements in CNC technology and investing in training and maintenance can help maximize the benefits of CNC lathe machines while mitigating potential disadvantages. CNC technology continues to evolve, offering even more capabilities and efficiencies, making it an important consideration for modern manufacturing operations.
